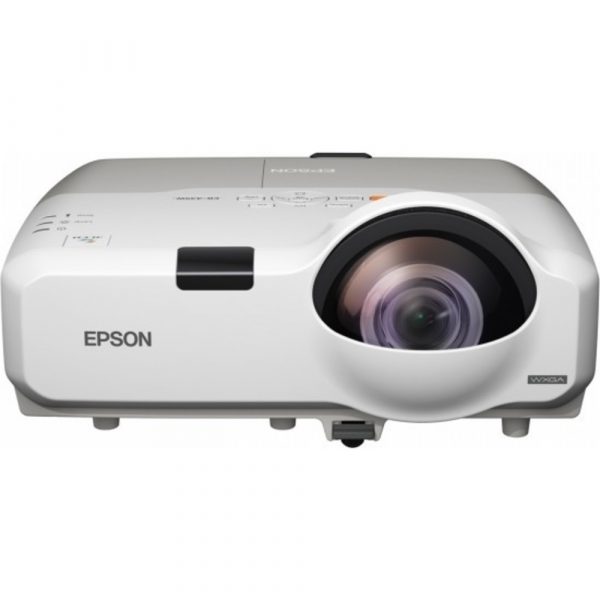

Epson EB-430 – XGA (1024 x 768) 3000 ANSI Short-Throw


SKU: 111 Category:


Ultra bright and fully featured, the Epson EB-430 3LCD Multimedia Projector is ideal for delivering exciting presentation and lesson content in modern classrooms and offices. With a high precision short throw lens and colour light output of 3,000 lumens in XGA, the EB-430 delivers beautiful, bright images with virtually no shadow or glare. Suitable for desktop use, or mounted to Epson’s purpose built ELP-MB27 wall mount, the EB-430 is a versatile, high performance tool for corporate and classrooms.


  • High Precision Short Throw Lens – virtually eliminate both glare in the presenter’s eyes, and shadows blocking the content for the audience
  • Optional Interactive Functionality – Turn any hard surface into an interactive workspace with the ELP-IU03 Interactive Module
  • Advanced Networking Capability – Enables users to monitor, control and present from a remote location
  • Broad Connectivity Including HDMI – HDMI, USB display, PC Free slideshows, network* and optional wireless connectivity* (*model dependent)
  • 16W Built-in Speaker – Built in audio with the power to fill a classroom


Short Throw
The short throw distance of the EB-430 enables presenters to stand close to the board without glare in the eyes. Shadows are virtually eliminated too, meaning the audience has an unobstructed view of the presented material.

Need to project a big image in a small room? Thanks again to the short throw lens of the EB-430 you can simply place the projector on the table, and create an image on the wall as large as 60″ (4:3 Aspect) from only 66cm away!

Choose Wall Mount, Ceiling Mount or Desktop
Versatile mounting options enables the EB-430 to be used in many different ways. Mount your projector on the stylish ELP-MB27 wall mount, ELP-MB23 ceiling mount, or maintain its portability and simply place it on the table.


Optional Interactive Functionality
Simply add the ELP-IU03 to your EB-430 projector and you can make virtually any wall a fully interactive workspace! With no requirement for an interactive whiteboard, you can utilise an existing pen-based whiteboard or even a flat wall for full colour presentations, interactive brainstorming sessions, annotation on-the-fly and much more. With the easy to use Easy Interactive Software (via download from you can turn your whiteboard into a fully interactive business or teaching tool. At the end of your meeting, simply save the file for printing or emailing to attendees.

For a complete, integrated, wall mounted interactive solution, purchase the EB-430 projector, the ELP-IU03 Interactive Module, and the stylish ELP-MB27 wall mount.

To mount your interactive solution from the ceiling, simply purchase the EB-430 projector, the ELP-IU03 Interactive Module, the ELP-MB23 and the ELP-PT04 interactive module mounting plate. Either way, there is a perfect Interactive Short Throw bundle available for your classroom or office!

Advanced Networking
With the EB-430 projector, it’s possible to monitor and control up to 1,024 networked Epson projectors from a remote location. Schedule power on or off timings, check projector status and receive maintenance alerts. Users can even project presentations in up to four rooms from one networked location.

Wireless Connectivity
With the addition of the optional ELPAP07 Wireless LAN Unit, the EB-430 projector can become a part of your 802.11 b/g/n wireless network. For incredibly easy peer-to-peer wireless connection on the fly without the need for additional software, add the ELPAP08 Easy MP quick wireless connection USB key.

Low Cost of Ownership

The EB-430 features a lamp boasting an estimated life of up to 6,000 hours and a low cost. This projector also benefits from a high efficiency electrostatic filter with an estimated maintenance cycle of up to 5,000 hours.


Direct Connect to ELP-DC06
Further enhancing suitability to the modern education environment is the ability for the EB-430 to connect directly to the Epson ELP-DC06 document camera / visualiser. These Epson products feature unique technology enabling them to connect via USB and provide full operation without the need for a PC.





Product Specs

  Epson EB-430 Projector inc. 1.8m Computer Cable, 5m power cable Remote Control, Batteries x 2, Projector Software Ver. 1.02b (CD ROM), Password Protect Sticker, Manual
Projection System Epson 3LCD, 3-chip technology
LCD Panel 0.55-inch with MLA (D8)
Zoom 1 – 1.35 (Optical Zoom)
Screen Size 37″ to 108″
Projection Distance 87″ screen 0.97m
Throw Ratio 0.55 (Zoom: Wide), 0.74 (Zoom: Tele)
Projection Lens F Number 1.80
Projection Lens Focal Length 6.48mm
Focus Method Manual Focus
Offset 12.80:1
Colour Light Output 3,000 Lumens
White Light Output 3,000 Lumens
Resolution XGA
Native Aspect Ratio 4:3
Contrast Ratio 3,000:1
Lamp Hours Normal/Eco: 4,000/6,000 Hours
Lamp Type 230W UHE (E-TORL)
Keystone Correction Vertical: -15 to +15 degrees
Horizontal: -15 to +15 degrees

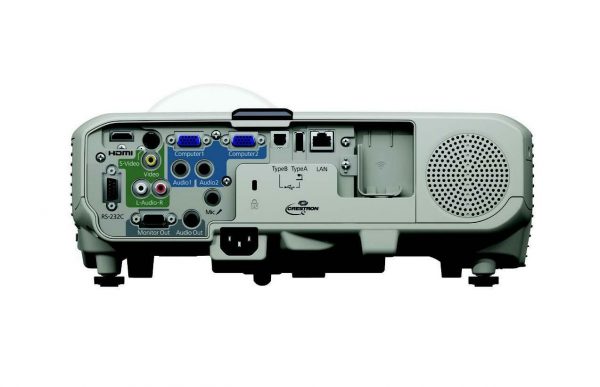

Input: Video 1 x RCA (Yellow), 1 x S-Video, 2 x Component (via D-sub 15-pin)
Input: Computer 2 x D-sub 15-Pin (RGB), 1 x USB 2.0 type B
Input: USB Memory Device USB Type A Ver.2.0
Input: Three-In-One USB Display 1 x USB 2.0 type B
Input: Digital 1 x HDMI
Input: Audio 1 x RCA (Red/White), 2 x Stereo mini jack
Input: Control 1 x USB 2.0 type B, RS232C
Input: Epson USB Document Camera 1 x USB 2.0 type B
Network I/O: RJ45 x 1 (100Mbps)
Wireless Connectivity Optional Accessory (ELP-AP07)
Output: Video D-sub 15 pin (black molding)
Output: Audio Stereo mini jack x 1
Speaker Output 16W
EasyMP Network & Control Yes
EasyMP Network Projection Yes
PC Free Presentations
USB Plug ‘n Play Yes
AV Mute Slide No
Instant Off Yes
Direct Power On/Off Yes
Security Kensington®-style lock provision
Security cable hole
Password protect function
Colour Modes Dynamic, Theatre,
Dimensions D x W x H 277 x 345 x 105 mm
Weight 3.8kg
Lamp Warranty 12 months or 750 hours*
Projector Warranty 3 Years
Power Consumption: Lamp on Normal: 316W / Eco: 232W
Power Consumption: Standby 0.37W (communication off)
Noise Level Normal: 37dB / Eco: 29dB
