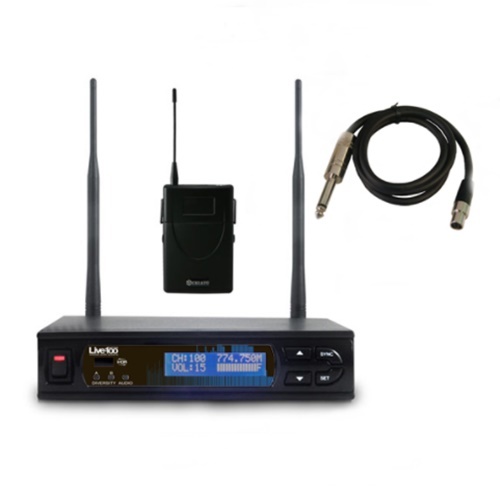

Chiayo LIVE-100 G Guitar Wireless System Package


SKU: LIVE-100 G Category:


Live-100 Series – Wireless System Packages

LIVE-100 system packages are a metal chassis receiver with 100 channels of UHF frequency selection with spectrum scan feature and IR frequency upload/download. XLR patch lead and rack mounting kit are included in each package.


  • Live-100 Wireless Receiver
  • SM1100 IrDA Beltpack Transmitter
  • MC12 Guitar Lead



  • 100 factory preset user-selectable UHF frequencies
  • Advanced microprocessor control, excellent RF design with improved signal performance for interference free multi-channel operation
  • Patented IrDA technology for 2-way sync between transmitter and receiver
  • SCAN function automatically locates the next clean frequency
  • More than 10-12 non interfering channels can be operated simultaneously within a selected 25MHz bandwidth
  • Diversity design for high sensitivity, high selectivity, and high image/spurious rejections
  • LCD display on the receiver shows selected frequency
  • Antennas can be either rear or front mounted.
  • Anti-interference Pilotone control and RF noise squelch circuitries
  • RF & AF LED indicators
  • Balanced (XLR)*1 / unbalanced (O6.3mm)*1 audio outputs
  • Half-rack metal chassis, mountable with optional mount kit.(MP-90S for 1 unit, MP-92S for 2 units)
  • Matching transmitters: SQ-6100 IrDA/SQ-5100 IrDA/SQ-2100 IrDA/SQ-1100 IrDA, SM-6100 IrDA/SM-1100 IrDA


Specifications (Wireless Receiver Specifications)
Frequency Range UHF
Switching Bandwidth 25Mhz
Switchable Frequencies 100
Channels 1
Display Screen LCD
Oscillation Type PLL Synthesised
Frequency Stability ±0.005%
Receiving Method True Diversity
Sensitivity -95dBm
2-Way synchronisation Yes
Image Rejection > 85dB
S/N Ratio > 110dB
Peak Deviation ±40KHz
T.H.D < 0.5%
Antenna Divider
Antenna Socket TNC Type
Audio Outputs

Unbalanced: +4dBm(1.25V)/5KΩ
Balanced: -18dBm(50mV)/600Ω

Squelch RF/Noise/Pilotone squelch
Power Supply 100-240V AC, 12V DC/2.0A
Chassis Half-rack (metal)
Dimensions (W*D*H, mm) 200*150*44
Weight (kg) 0.63
** Remark: The above specifications are subject to change without prior notice.
