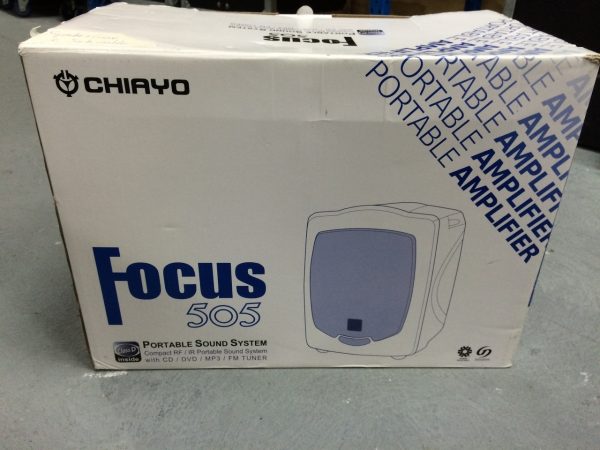

Chiayo Focus 505 Portable Sound System


1 in stock

SKU: 488 Category:


A High efficiency Class D amplifier which produces 30W RMS audio output (maximum music output 50W).

All-In-One! Easy to operate in both indoors and outdoors.

Comes with a rechargeable Lead-Acid battery eliminates all cables so you can take it anywhere!

And includes a smart charging circuit with LED indicator.

This item is new and comes with a protective soft casing. Cables/microphones not included.
See specifications below:



  • Output power: 50W, 30W(RMS) 4Ω load (class-D)
  • Speaker system: 6 ½” full range
  • Audio input: Mic in, Aux in
  • Audio output: Aux out, External speaker
  • T.H.D: < 0.5%
  • Freq. response: 50Hz-20KHz ± 3dB
  • Antenna: Built-in
  • Power supply: 100-240V AC / 15V DC, 4.3A
  • Battery type: Lead-Acid
  • Battery spec: 12V, 2.9A
  • Battery Q’ty: 1
  • Operating time: 5-6 hrs in music, 10-12 hrs in speech
  • Charging time: about 4 hrs
  • Dimension (mm): 313(H) x 220(W) x 215(D)
  • Weight (kg): 4.8
  • Receiver module: SDR-5116M / 5100M IrDA
  • Transmitter module: RP-5016M
  • MP3 module: DPR-500M, DP-500M
  • Bluetooth module: BT-500M
  • Patent: Taiwan, China, USA, Germany
  • Approval: CE, RoHS, FCC, ICID

Additional information

Weight 4.5 kg
